Corner Wrap Module (CWM)
This module was developed to be integrated with the Utility Servo Labelling head (UT-2se) to allow labelling of curved products like pails and corners of shipping cases (front and side). When integrated into the Print and Apply LooseLoop (PALLS) system, the module allows CornerWrap labelling with rates as high as 25 products per minute and up to 12 inch labels.

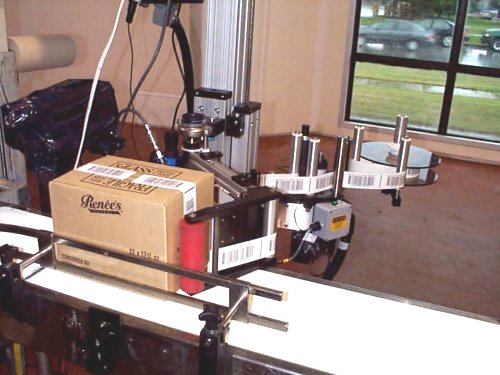

The Servo labelling head (UT-2se) with the CornerWrap Module.

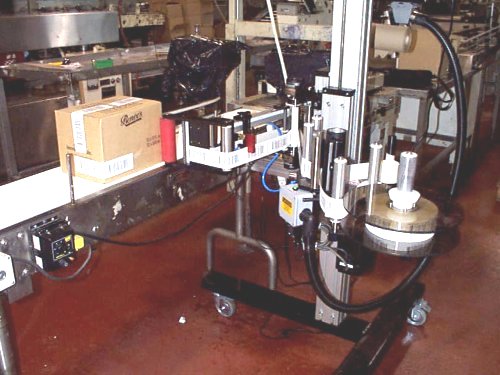

Corner-wrap application to a shipping case.

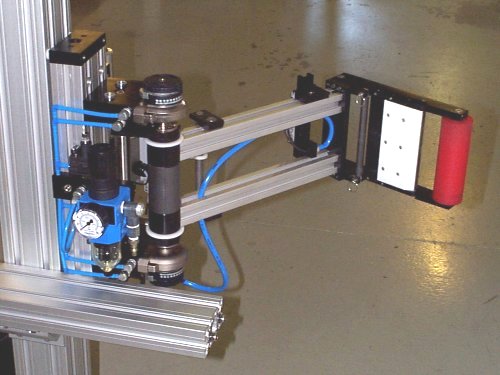

CornerWrap Module.

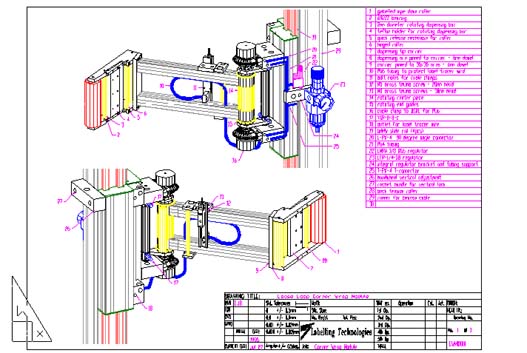

Technical Drawing of the CornerWrap Module.
