Pallet & Drum Labeller (VDR2)
The Print and Apply Vacuum Drum Double Axis (VDR-2 Axis) is a highly sophisticated yet user friendly pallet labelling system. The labeller is delivered with a host of standard features which simplify operation and set-up, and make interfacing with automated system easy. Some options include, multiple levels of extended control packages and a wide selection of integratable printers.
Features:

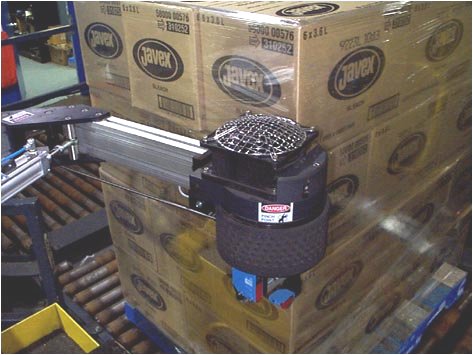

- Vacuum drum assembly allows labelling of uneven surface with help of pneumatic self-adjusting arm
- The system can apply labels to ONE SIDE (Front or Side), ONE LABEL TO TWO ADJECENT SIDES (Front and Side) or TWO LABELS TO TWO ADJECENT SIDES (Front and Side)
- Self adjusting arm stroke
- System easily adapted to accommodate signals from existing machinery
- Extended control package available for advanced levels of machine/operator interface
Optional Accessories:
- Wide range of labels, 4"x4" to 4"x24"
- Upgrade to 8.5"W x 24"L label size
- Custom Label Size Capacity Option
- PLC Interface I/O
- System status monitors
- Printer status monitor
- PC Interface
- Bar Code Scanning
- Arm reach up to 30"
- Configuration Diagnostics Software

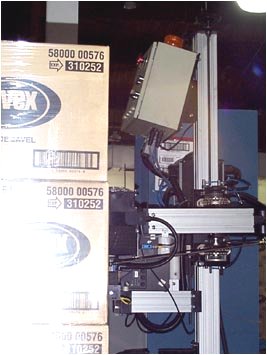

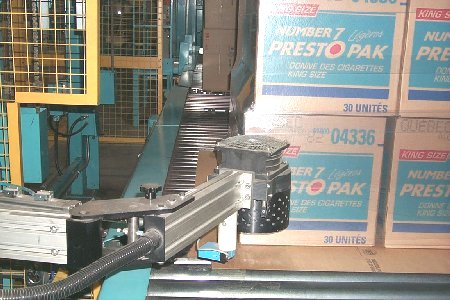

Leading panel, side or corner-wrap pallet labelling done at random. The labels can be as large as 8.5"H x 24"L.

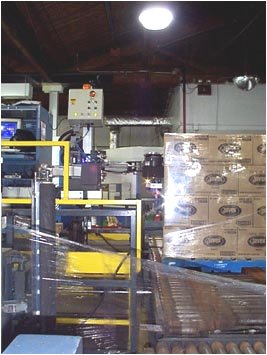

The Pallet Labeller can be integrated into your packaging line to communicate with your equipment (ex. PLC) for operator free production.
The Plant Software option is a powerful tool for running multiple Print and Apply labelling systems, as well as other machines and devices in the packaging line.

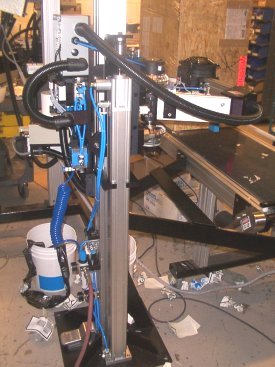

Pneumatic Vertical Height Adjustment for VDR systems.
